The RSA key generator uses the provided public exponent as parameter, and selects appropriate p and q. This rules out even values. Any odd integer (except 1) can be used as public exponent; using a prime only makes it slightly simpler for the key generator. The RSA Algorithm. The Rivest-Shamir-Adleman (RSA) algorithm is one of the most popular and secure public-key encryption methods. RSA encryption usually is only used for messages that fit into one block. RSA, as defined by PKCS#1, encrypts 'messages' of limited size,the maximum size of data which can be encrypted with RSA is 245 bytes. Nov 04, 2014  The RSA Encryption Algorithm (1 of 2: Computing an Example) - Duration: 8:40. Eddie Woo 400,470 views.

Contents

1. Apr 22, 2017  filternone RSA algorithm is asymmetric cryptography algorithm. Asymmetric actually means that it works on two different keys i.e. Public Key and Private Key. As the name describes that the Public Key is given to everyone and Private key is kept private.
2. Key generation is the process of generating keys in cryptography. A key is used to encrypt and decrypt whatever data is being encrypted/decrypted. A device or program used to generate keys is called a key generator or keygen.

• 3. Saving the Keys in Binary Format
• Source Code

1. Introduction

Random Self Reducibility of RSA Problem: Given a public key (nA;eA) of user A: Assume we are given an algorithm, called ALG, which given EA(m) meA (mod nA) can nd the message mfor 1 100 of the possible cryptograms. Show a polynomial random algorithm which given EA(m) meA (mod nA) nds the message mwith probability 1 2. Jun 03, 2016  Rsa algorithm key generation 1. RSAAlgorithm is the first public key algorithm discovered by a group of three scientists namely Ron Rivest,Adi Shamir and Len Adleman and was first published in 1978. RSAAlgorithm is based on the original work of Diffie.

Let us learn the basics of generating and using RSA keys in Java.

Java provides classes for the generation of RSA public and private key pairs with the package java.security. You can use RSA keys pairs in public key cryptography.

Public key cryptography uses a pair of keys for encryption. Distribute the public key to whoever needs it but safely secure the private key.

Public key cryptography can be used in two modes:

Encryption: Only the private key can decrypt the data encrypted with the public key.

Authentication: Data encrypted with the private key can only be decrypted with the public key thus proving who the data came from.

2. Generating a Key Pair

First step in creating an RSA Key Pair is to create a KeyPairGeneratorfrom a factory method by specifying the algorithm (“RSA” in this instance):

Initialize the KeyPairGenerator with the key size. Use a key size of 1024 or 2048. Currently recommended key size for SSL certificates used in e-commerce is 2048 so that is what we use here.

From the KeyPair object, get the public key using getPublic() and the private key using getPrivate().

3. Saving the Keys in Binary Format

Save the keys to hard disk once they are obtained. This allows re-using the keys for encryption, decryption and authentication.

What is the format of the saved files? The key information is encoded in different formats for different types of keys. Here is how you can find what format the key was saved in. On my machine, the private key was saved in PKCS#8 format and the public key in X.509 format. We need this information below to load the keys.

3.1. Load Private Key from File

After saving the private key to a file (or a database), you might need to load it at a later time. You can do that using the following code. Note that you need to know what format the data was saved in: PKCS#8 in our case.

3.2 Load Public Key from File

Load the public key from a file as follows. The public key has been saved in X.509 format so we use the X509EncodedKeySpec class to convert it.

4. Use Base64 for Saving Keys as Text

Save the keys in text format by encoding the data in Base64. Java 8 provides a Base64 class which can be used for the purpose. Save the private key with a comment as follows:

And the public key too (with a comment):

5. Generating a Digital Signature

As mentioned above, one of the purposes of public key cryptography is digital signature i.e. you generate a digital signature from a file contents, sign it with your private key and send the signature along with the file. The recipient can then use your public key to verify that the signature matches the file contents.

Here is how you can do it. Use the signature algorithm “SHA256withRSA” which is guaranteed to be supported on all JVMs. Use the private key (either generated or load from file as shown above) to initialize the Signatureobject for signing. It is then updated with contents from the data file and the signature is generated and written to the output file. This output file contains the digital signature and must be sent to the recipient for verification.

6. Verifying the Digital Signature

The recipient uses the digital signature sent with a data file to verify that the data file has not been tampered with. It requires access to the sender’s public key and can be loaded from a file if necessary as presented above.

The code below updates the Signature object with data from the data file. It then loads the signature from file and uses Signature.verify() to check if the signature is valid.

And that in a nutshell is how you can use RSA public and private keys for digital signature and verification.

Source Code

Go here for the source code.

• Cryptography Tutorial

• Cryptography Useful Resources

• Selected Reading

Public Key Cryptography

Unlike symmetric key cryptography, we do not find historical use of public-key cryptography. It is a relatively new concept.

Symmetric cryptography was well suited for organizations such as governments, military, and big financial corporations were involved in the classified communication.

With the spread of more unsecure computer networks in last few decades, a genuine need was felt to use cryptography at larger scale. The symmetric key was found to be non-practical due to challenges it faced for key management. This gave rise to the public key cryptosystems.

The process of encryption and decryption is depicted in the following illustration −

The most important properties of public key encryption scheme are −

• Different keys are used for encryption and decryption. This is a property which set this scheme different than symmetric encryption scheme.

• Each receiver possesses a unique decryption key, generally referred to as his private key.

• Receiver needs to publish an encryption key, referred to as his public key.

• Some assurance of the authenticity of a public key is needed in this scheme to avoid spoofing by adversary as the receiver. Generally, this type of cryptosystem involves trusted third party which certifies that a particular public key belongs to a specific person or entity only.

• Encryption algorithm is complex enough to prohibit attacker from deducing the plaintext from the ciphertext and the encryption (public) key.

• Though private and public keys are related mathematically, it is not be feasible to calculate the private key from the public key. In fact, intelligent part of any public-key cryptosystem is in designing a relationship between two keys.

There are three types of Public Key Encryption schemes. We discuss them in following sections −

Key Generation Using Rsa Algorithm Free

RSA Cryptosystem

This cryptosystem is one the initial system. It remains most employed cryptosystem even today. The system was invented by three scholars Ron Rivest, Adi Shamir, and Len Adleman and hence, it is termed as RSA cryptosystem.

We will see two aspects of the RSA cryptosystem, firstly generation of key pair and secondly encryption-decryption algorithms.

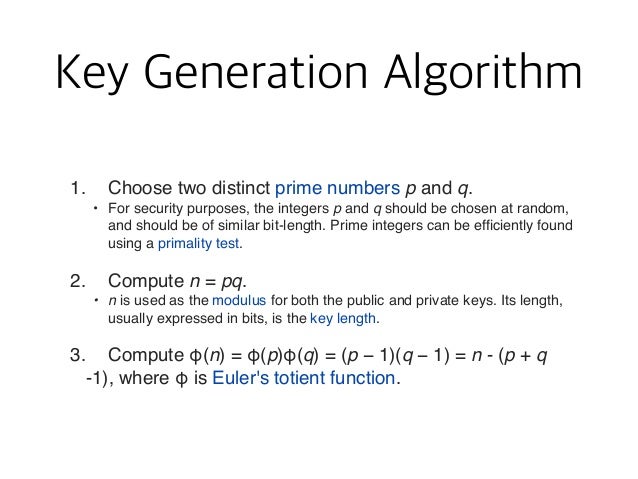

Generation of RSA Key Pair

Each person or a party who desires to participate in communication using encryption needs to generate a pair of keys, namely public key and private key. The process followed in the generation of keys is described below −

• Generate the RSA modulus (n)

  • Select two large primes, p and q.

  • Calculate n=p*q. For strong unbreakable encryption, let n be a large number, typically a minimum of 512 bits.

• Find Derived Number (e)

  • Number e must be greater than 1 and less than (p − 1)(q − 1).

  • There must be no common factor for e and (p − 1)(q − 1) except for 1. In other words two numbers e and (p – 1)(q – 1) are coprime.

• Form the public key

  • The pair of numbers (n, e) form the RSA public key and is made public.

  • Interestingly, though n is part of the public key, difficulty in factorizing a large prime number ensures that attacker cannot find in finite time the two primes (p & q) used to obtain n. This is strength of RSA.

• Generate the private key

  • Private Key d is calculated from p, q, and e. For given n and e, there is unique number d.

  • Number d is the inverse of e modulo (p - 1)(q – 1). This means that d is the number less than (p - 1)(q - 1) such that when multiplied by e, it is equal to 1 modulo (p - 1)(q - 1).

  • This relationship is written mathematically as follows −

The Extended Euclidean Algorithm takes p, q, and e as input and gives d as output.

Example

An example of generating RSA Key pair is given below. (For ease of understanding, the primes p & q taken here are small values. Practically, these values are very high).

• Let two primes be p = 7 and q = 13. Thus, modulus n = pq = 7 x 13 = 91.

• Select e = 5, which is a valid choice since there is no number that is common factor of 5 and (p − 1)(q − 1) = 6 × 12 = 72, except for 1.

• The pair of numbers (n, e) = (91, 5) forms the public key and can be made available to anyone whom we wish to be able to send us encrypted messages.

• Input p = 7, q = 13, and e = 5 to the Extended Euclidean Algorithm. The output will be d = 29.

• Check that the d calculated is correct by computing −

• Hence, public key is (91, 5) and private keys is (91, 29).

Encryption and Decryption

Once the key pair has been generated, the process of encryption and decryption are relatively straightforward and computationally easy.

Interestingly, RSA does not directly operate on strings of bits as in case of symmetric key encryption. It operates on numbers modulo n. Hence, it is necessary to represent the plaintext as a series of numbers less than n.

RSA Encryption

• Suppose the sender wish to send some text message to someone whose public key is (n, e).

• The sender then represents the plaintext as a series of numbers less than n.

• To encrypt the first plaintext P, which is a number modulo n. The encryption process is simple mathematical step as −

• In other words, the ciphertext C is equal to the plaintext P multiplied by itself e times and then reduced modulo n. This means that C is also a number less than n.

• Returning to our Key Generation example with plaintext P = 10, we get ciphertext C −

RSA Decryption

• The decryption process for RSA is also very straightforward. Suppose that the receiver of public-key pair (n, e) has received a ciphertext C.

• Receiver raises C to the power of his private key d. The result modulo n will be the plaintext P.

• Returning again to our numerical example, the ciphertext C = 82 would get decrypted to number 10 using private key 29 −

RSA Analysis

The security of RSA depends on the strengths of two separate functions. The RSA cryptosystem is most popular public-key cryptosystem strength of which is based on the practical difficulty of factoring the very large numbers.

• Encryption Function − It is considered as a one-way function of converting plaintext into ciphertext and it can be reversed only with the knowledge of private key d.

• Key Generation − The difficulty of determining a private key from an RSA public key is equivalent to factoring the modulus n. An attacker thus cannot use knowledge of an RSA public key to determine an RSA private key unless he can factor n. It is also a one way function, going from p & q values to modulus n is easy but reverse is not possible.

If either of these two functions are proved non one-way, then RSA will be broken. In fact, if a technique for factoring efficiently is developed then RSA will no longer be safe.

The strength of RSA encryption drastically goes down against attacks if the number p and q are not large primes and/ or chosen public key e is a small number.

ElGamal Cryptosystem

Along with RSA, there are other public-key cryptosystems proposed. Many of them are based on different versions of the Discrete Logarithm Problem.

ElGamal cryptosystem, called Elliptic Curve Variant, is based on the Discrete Logarithm Problem. It derives the strength from the assumption that the discrete logarithms cannot be found in practical time frame for a given number, while the inverse operation of the power can be computed efficiently.

Let us go through a simple version of ElGamal that works with numbers modulo p. In the case of elliptic curve variants, it is based on quite different number systems.

Generation of ElGamal Key Pair

Each user of ElGamal cryptosystem generates the key pair through as follows −

• Choosing a large prime p. Generally a prime number of 1024 to 2048 bits length is chosen.

• Choosing a generator element g.

  • This number must be between 1 and p − 1, but cannot be any number.

  • It is a generator of the multiplicative group of integers modulo p. This means for every integer m co-prime to p, there is an integer k such that g^k=a mod n.

    For example, 3 is generator of group 5 (Z₅ = {1, 2, 3, 4}).

• Choosing the private key. The private key x is any number bigger than 1 and smaller than p−1.

• Computing part of the public key. The value y is computed from the parameters p, g and the private key x as follows −

• Obtaining Public key. The ElGamal public key consists of the three parameters (p, g, y).

  For example, suppose that p = 17 and that g = 6 (It can be confirmed that 6 is a generator of group Z₁₇). The private key x can be any number bigger than 1 and smaller than 71, so we choose x = 5. The value y is then computed as follows −

• Thus the private key is 62 and the public key is (17, 6, 7).

Encryption and Decryption

The generation of an ElGamal key pair is comparatively simpler than the equivalent process for RSA. But the encryption and decryption are slightly more complex than RSA.

ElGamal Encryption

Suppose sender wishes to send a plaintext to someone whose ElGamal public key is (p, g, y), then −

• Sender represents the plaintext as a series of numbers modulo p.

• To encrypt the first plaintext P, which is represented as a number modulo p. The encryption process to obtain the ciphertext C is as follows −

  XXXXX - XXXXX - XXXXX - XXXXX - XXXXX. Delta Force Xtreme 2 License Activation Key generator. Before our system send cd key, you will need to pass this human verification step. In order to bypass this step, you will need to complete a short and simple offer. This will allow our system to know that are you human. Delta force xtreme 2 cd key generator. Aug 19, 2017  This is the best version of Delta Force Xtreme 2 CD-Key Generator.Delta Force Xtreme 2 Cd key generator updated latest working tool online.Get Delta Force Xtreme 2 Redeem Code Generator on PC, Xbox One, PS4, It is going to take time to generate unique Delta Force Xtreme 2 redeem key.Delta Force Xtreme 2 Key Generator. This is a fully legit, Out-Of-The-Box Delta Force Xtreme 2 CD Key / Serial! Delivery via email within 12 hours of payment. Note: These keys are NOT registerable with a steam account.

  • Randomly generate a number k;
  • Compute two values C1 and C2, where −

• Send the ciphertext C, consisting of the two separate values (C1, C2), sent together.

• Referring to our ElGamal key generation example given above, the plaintext P = 13 is encrypted as follows −

  • Randomly generate a number, say k = 10
  • Compute the two values C1 and C2, where −

• Send the ciphertext C = (C1, C2) = (15, 9).

ElGamal Decryption

• To decrypt the ciphertext (C1, C2) using private key x, the following two steps are taken −

  • Compute the modular inverse of (C1)^x modulo p, which is (C1)^-x , generally referred to as decryption factor.

  • Obtain the plaintext by using the following formula −

• In our example, to decrypt the ciphertext C = (C1, C2) = (15, 9) using private key x = 5, the decryption factor is

• Extract plaintext P = (9 × 9) mod 17 = 13.

ElGamal Analysis

Key Generation Using Rsa Algorithm Free

In ElGamal system, each user has a private key x. and has three components of public key − prime modulus p, generator g, and public Y = g^x mod p. The strength of the ElGamal is based on the difficulty of discrete logarithm problem.

The secure key size is generally > 1024 bits. Today even 2048 bits long key are used. On the processing speed front, Elgamal is quite slow, it is used mainly for key authentication protocols. Due to higher processing efficiency, Elliptic Curve variants of ElGamal are becoming increasingly popular.

Elliptic Curve Cryptography (ECC)

Elliptic Curve Cryptography (ECC) is a term used to describe a suite of cryptographic tools and protocols whose security is based on special versions of the discrete logarithm problem. It does not use numbers modulo p.

Rsa Algorithm

ECC is based on sets of numbers that are associated with mathematical objects called elliptic curves. There are rules for adding and computing multiples of these numbers, just as there are for numbers modulo p.

ECC includes a variants of many cryptographic schemes that were initially designed for modular numbers such as ElGamal encryption and Digital Signature Algorithm.

It is believed that the discrete logarithm problem is much harder when applied to points on an elliptic curve. This prompts switching from numbers modulo p to points on an elliptic curve. Also an equivalent security level can be obtained with shorter keys if we use elliptic curve-based variants.

The shorter keys result in two benefits −

• Ease of key management
• Efficient computation

These benefits make elliptic-curve-based variants of encryption scheme highly attractive for application where computing resources are constrained.

RSA and ElGamal Schemes – A Comparison

Rsa Algorithm Pdf

Let us briefly compare the RSA and ElGamal schemes on the various aspects.
